Description

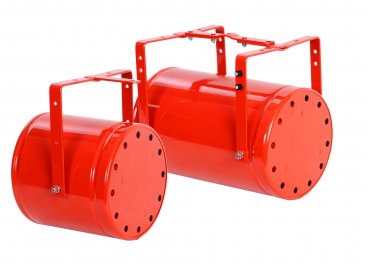

DSPA 8-1 and 8-2 aerosol generators can be used as a part of a highly effective fire extinguishing system. A DSPA generator is non-pressurized and is installed inside a room or compartment that requires protection. After activation, an aerosol cloud is generated, which expanse volumetrically, flooding the space and extinguishing the fire. The DSPA generators are mainly designed to use in normally unoccupied and unoccupied areas and are effective on class A, B, C fires.
Application
The DSPA generators 8-1 and 8-2 are recommended for the protection of large compartments against fire, such as storage rooms, archives, technical rooms and server rooms.
| Model | 8-1 | 8-2 |
| Dimensions | 220 x 220 mm 8,6 “ x 8,6” |
350 x 220 mm 13,8”x 8,6” |
| Total weight | 12 kg 26,5 lbs |
18 kg 39,7 lbs |
| Volume coverage | 25 - 75 m³ 880 – 2650 ft³ |
53 - 154 m³ 1870 – 5440ft³ |
| Discharge time | 78 sec | 140 sec |
| Activation, current | Screw-in starter, 1.3A | |
| Operation conditions | -40°C to 54°C/ -40°F to 129°F Up to 95% RH at 54°C |
|
| Colour | Standard RAL 3000, other colours upon request | |
