Description

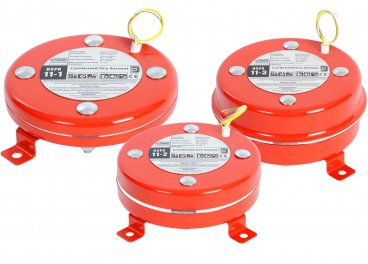

DSPA aerosol generators 11-1, 11-2 and 11-3 can be used as a part of a highly effective fire extinguishing system. A DSPA generator is non-pressurized and is installed inside a room or compartment that requires protection. After activation, an aerosol cloud is generated, which expanse volumetrically, flooding the space and extinguishing the fire. The DSPA generators are mainly designed to use in normally unoccupied and unoccupied areas and are effective on class A, B, C fires.
Application
The DSPA generators 11-1, 11-2 and 11-3 are recommended for the protection of narrow compartments or objects, such as suspended ceilings, raised floors, cable ducts, transport vehicles, switchgears etc.
| Model | 11-1 | 11-2 | 11-3 |
| Dimensions | 122x22 mm 4,8” x 0,87” |
124x34 mm 4,9” x 1,3” |
133x54 mm 5,2” x 2,1” |
| Total weight | 0,55 kg 1,2 lbs |
0,8 kg 1,7 lbs |
1,3 kg 2,9 lbs |
| Volume coverage | 0.9 - 2.5 m³ 31 – 88 ft³ |
1.3 - 3.9 m³ 46 – 138 ft³ |
2.4 - 6.9 m³ 84 – 244 ft³ |
| Discharge time | 8 sec | 12 sec | 20 sec |
| Activation, current | Built-in starter, 1.3A | ||
| Operation conditions | -40°C to 75°C/ -40°F to 167°F Up to 95% RH at 54°C |
||
| Colour | Standard RAL 3000, other colours upon request | ||
